Fiber Laser Marking Machine Routine Maintenance

When the unit is not working, the Table Type Fiber Laser Marking Machine and computer power should be turned off.
When the machine is not working, cover the field lens lens to prevent dust from contaminating the optical lens.
When the machine is working, the circuit is in a high voltage state. If it is not a professional China Laser Marking Machine Manufacturer, do not overhaul it during startup to avoid electric shock.
If there is any malfunction of this unit, the power should be cut off immediately.
When the equipment is used for a long time, the dust in the air will be adsorbed on the lower end surface of the focusing mirror. The lighter will reduce the power of the laser and affect the marking effect; the heavy one will cause the optical lens to absorb heat and overheat and burst. When the marking effect is not good, carefully check the surface of the focusing mirror for contamination.
If the surface of the focusing mirror is contaminated, the focusing mirror should be removed to clean the lower surface.
Care should be taken when removing the focusing mirror, taking care not to break or fall; at the same time, do not touch the focusing mirror with your hand or other objects.
The cleaning method is to mix anhydrous ethanol (analytical grade) with diethyl ether (analytical grade) in a ratio of 3:1, infiltrate the mixture with a long fiber cotton swab or lens paper, and gently scrub the lower end surface of the focusing mirror. A cotton swab or lens paper must be replaced.
During the working of the marking machine, the marking machine must not be moved to avoid damage to the machine.
Do not cover the stack or put other items on the marking machine to avoid affecting the heat dissipation effect of the machine.

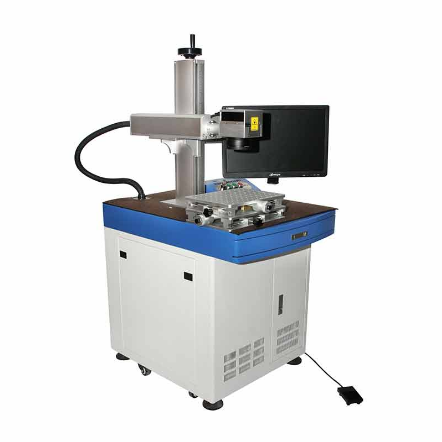

Table Type Fiber Laser Marking Machine
